Phase current transformers

Phase current transformers

For mounting on bushings and pole plates

for Alpha M, Alpha E

Three short-circuit sensors next to each other
ABBOrder No.
SafeRing, SafeLink, RGC, SafePlus3 x 49-6012-009
Three short-circuit sensors next to each other
ABBOrder No.
SafeRing, RGC,
SafePlus		1 x 49-6012-015
Three short-circuit sensors next to each other
EATON/HolecOrder No.
SVS1 x 49-6010-0327

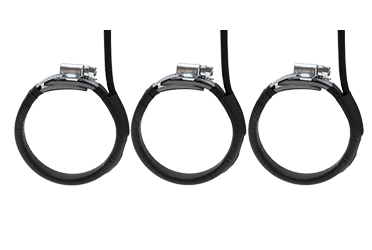

Three short-circuit sensors in black next to each other
EATON/HolecOrder No.
XIRIA1 x 49-6010-048

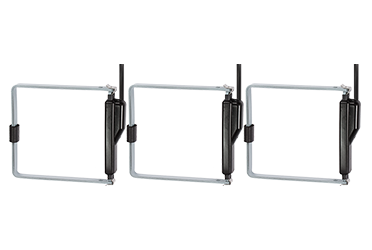

Three short-circuit sensors next to each other
OrmazabalOrder No.
GA / GAE, GE3 x 49-6010-011

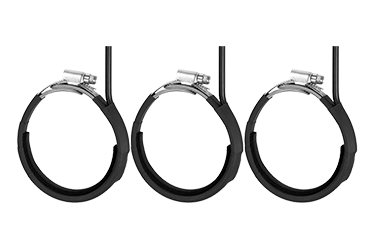

Three short-circuit sensors next to each other
Schneider ElectricOrder No.
RM63 x 49-6010-044

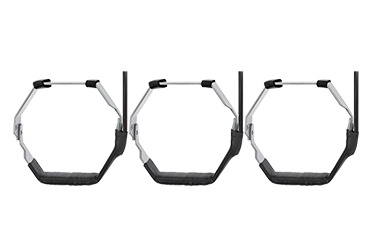

Three short-circuit sensors next to each other
Schneider ElectricOrder No.
FBA, GLA, GMA3 x 49-6010-030

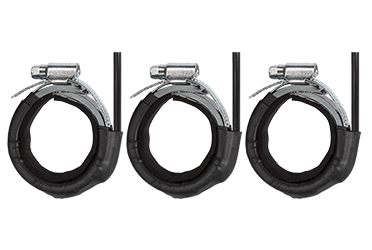

Three short-circuit sensors next to each other
Schneider ElectricOrder No.
FBX3 x 49-6012-005

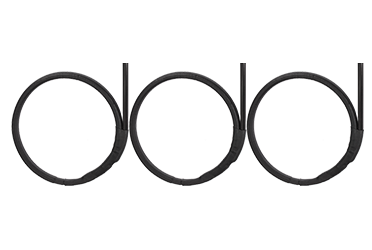

Three short-circuit sensors next to each other
SiemensOrder No.
8DJ, 8DH, SIMOSEC3 x 49-6010-052

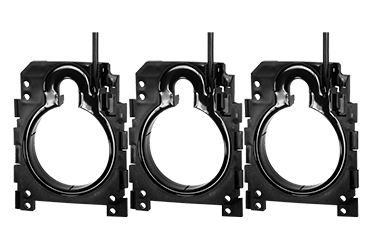

Three short-circuit sensors next to each other
SiemensOrder No.
8DJH Module transformers3 x 49-6010-060

For mounting on shielded and earthed cables

for Alpha M, Alpha E

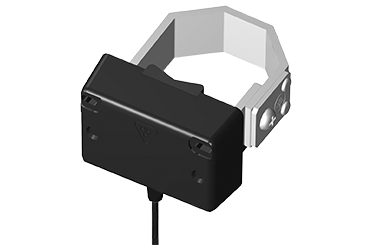

Black short-circuit sensor with white band
Dimensions for conductor [mm] Conductor length [m] Art. No.
15 – 52 3.00 49-6011-040
15 – 52 6.00 49-6011-043

For mounting on medium-voltage cables or bare copper busbars

for Opto F 3.0, Opto F+E 3.0

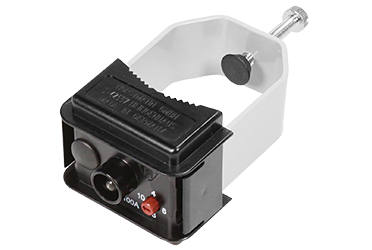

Black short-circuit sensor with white band
Response values [A] for conductor Ø [mm] Art. No.
400, 600, 800 or 1,000 22 – 42 49-0101-202

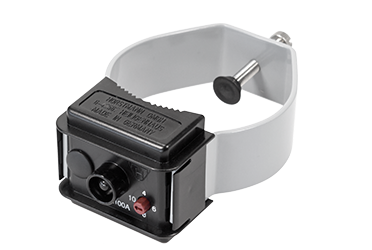

Black short-circuit sensor with white band
Response values [A]for conductor Ø [mm]Art. No.
400, 600, 800 or 1,00040 – 6049-0101-203

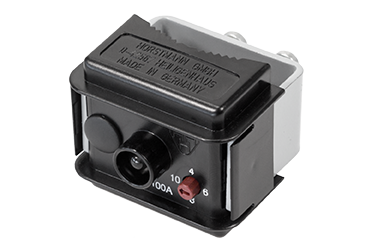

Small short-circuit sensor in black
Response values [A]for conductor Ø [mm]Art. No.
400, 600, 800 or 1,00020 x 4 – 40 x 1049-0101-206
