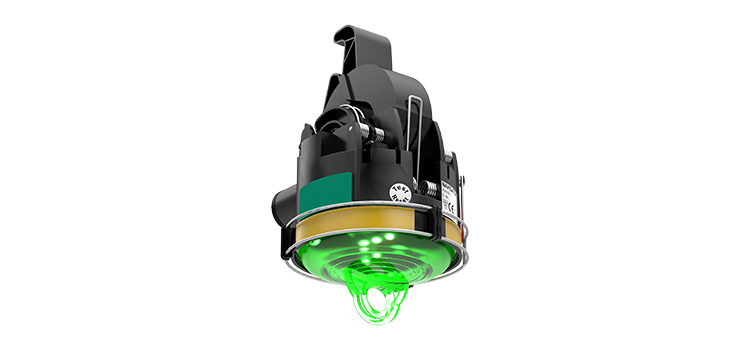

Smart Navigator 2.0
Overhead line short-circuit indicator
The Smart Navigator 2.0 is the ideal solution for monitoring overhead line networks. It recognises and reports faults, voltage drops, overloads and other faults in the grid and reports them remotely without delay. It enables faster fault localisation, optimum utilisation of grid capacity and therefore improved supply quality.
Energy is stored in a rechargeable lithium battery for periods with low or no load current. It is compatible with various communication technologies and can be maintained remotely via iHost.
One set is required for each overhead line section to be monitored. The set consists of a master and two satellites. The satellites report all measured values and fault information to the master, which communicates with iHost and optionally with the control room.
The Smart Navigator 2.0 series is characterized by the following criteria:
- Remote reporting of measured values – high-precision measured current values, load flow direction and conductor cable temperature
- Built-in mobile radio modem
- Remote configuration and updates via iHost or on-site via USB transmitter
- Higher availability of the medium-voltage overhead line
Power management
For overhead lines with base loads smaller than 5 A, pole-mounted units with solar panels are used to ensure supply and control room communication. Alternatively, these can be powered from a DC or AC auxiliary power supply.
The high battery capacity of the display devices guarantees a service life of >10 years, whereby any minimum load current can extend the service life. Thanks to the solar or voltage supply, a mast station can communicate with up to nine Smart Navigator 2.0 LC simultaneously and thus monitor and remotely report on three 3-phase overhead line sections.
Your added value
- Quick fault detection – reduces downtimes
- Overhead line monitoring – data for assessing the condition of the grid
- Innovative mounting – installation under voltage and from the ground possible
- Remote maintenance – import configuration and updates from the control room
Product features
Smart Navigator 2.0
- Nominal voltage range: 2.4 ≤ 69 kV
- Min. load current: 0 A
- Max. Continuous phase current: 600A
Smart Navigator 2.0 LC + Pole Master
- Nominal voltage range: 2.4 ≤ 69 kV
- Min. load current: 0 A
- Max. Continuous phase current: 600A
- Pole Master solar and battery supply for very low load currents <5A
- Up to 9 satellites per Pole Master

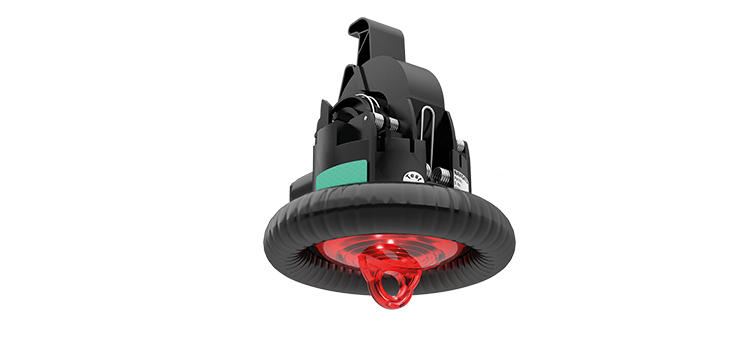

Smart Navigator 2.0 HV
- Nominal voltage range: 69 – 161 kV (L-L)
- Min. load current: 5 A
- Max. Continuous phase current: 600A
- Different modems available
Technical data
| Smart Navigator 2.0 | |
|---|---|
| I>> Response values Short-circuit current | 7 – 1,200 A (self-adjusting) or fixed value up to 2,000 A |
| Self-calibration | >=2 A load current / response current = 4 x load current from 60 s load current flow time / 72 h hold time |
| Indicators (short-circuit / earth fault) | Ultra-bright LEDs / Visibility >50 m during the day / >150 m at night / 360° all-round visibility |
| Measuring accuracy current | ±2 A (0 – 10 A) 3 % (10 – 600 A) 10 % (600 – 10,000 A) |
| Reset |
|
| Power supply | Inductive via mains current > 5A with battery back-up supply / battery and solar supply with Pole Master |
| Max. Permissible voltage | Smart Navigator 2.0 : ≤69 kV (L-L) Smart Navigator 2.0 HV: ≤151 kV (L-L) |
| Dielectric strength | 600 A continuous 40 kA / 1 s |
| Event messages |
|
| Remote notification |
|
| Communication | WAN: 2G/4G, 4G LTE CAT-M1, 450 MHz LTE | 1 SIM card format 2ff | TLS encryption Local: 868 MHz short-range radio |
| Control room connection | DNP3 from master to iHost Control room connection from iHost via IEC60870-5-101, IEC60870-5-104, DNP3 (serial), DNP3 (IP) |
| Configuration and firmware | Remotely configurable settings Supports firmware updates via radio* Interface control room / iHost or with USB transmitter on site*The support period for security updates is generally 2 years. Extended support is possible on request and in consultation with the manufacturer. |
| Cable diameter | Up to 33 mm |
| Housing | UV-resistant, IP68, weight approx. 1.5 kg |
| Temperature range | -40 °C to +85 °C |
All important documents for the device
Do you need additional information about our device? In our download area you will find all relevant documents such as brochures and product catalogs, technical reports, operating instructions and dimensional drawings (login required). Simply click on the download area to obtain the documents you require.
Matching articles
PERFECT MATCH
Here you will find the matching equipment set and accessories for this item. All components are technically matched to each other and guarantee optimum functionality. For customer-specific requirements and individual offers, please contact our sales department.
Equipment set
- 1 Smart Navigator 2.0 | Smart Navigator 2.0 HV display unit
Other overhead line indicators
Navigator LM |
Navigator LM HV
- Overhead line short-circuit indicator with 360° LED display
- Load-dependent self-adjustment of the response current
- Navigator LM HV: permissible voltage ≤161 kV
