Earthing fixed points

Earthing fixed points are critical safety components in electrical installations that ensure a reliable connection to the earthing system. They are used for personal protection and system safety by preventing dangerous contact voltages in the event of a fault and safely conducting leakage currents to earth.

Key properties of fixed earthing points:

  • Permanently low-resistance connection to the earthing system
  • High mechanical stability to absorb tensile forces
  • Corrosion resistance even when installed outdoors
  • Standard-compliant marking with the earthing symbol

Technical requirements:

  • Sufficient cross-section for expected residual currents
  • Vibration-proof design of the connecting elements
  • Protection against unintentional loosening
  • Resistance to electrochemical corrosion

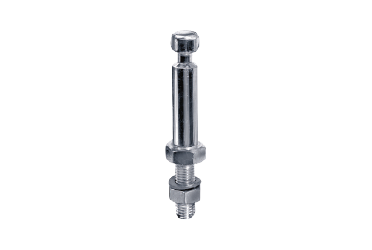

Earth connection bolt for earth connection socket

  • Material: brass, tin-plated
  • With steel grub screw
Mounting in switchgear
[mm]
Rated value Ir [kA]/tr = 1 s Item no.
M12 x 25 18,7 63-0201-007
M12 x 40 18,7 63-0201-006

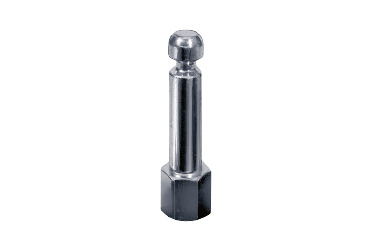

Silberner Erdanschlussbolzen für Erdanschlussbuchse und Schraube
  • With internal thread
Mounting in switchgear [mm] Rated value Ir [kA]/tr = 1 s Item no.
M12 18,7 63-0201-003
Silberner Erdanschlussbolzen für Erdanschlussbuchse mit Innengewinde

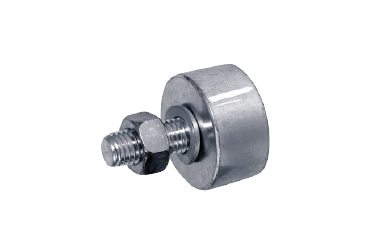

Weld-on stud for connection adapter with captive wing nut or with hole

  • 13 mm
  • Material: galvanized steel
Mounting in switchgear [mm] Rated value Ir [kA]/tr = 1 s Item no.
M12 x 30 18,7 63-0204-001
Silberner Anschweißbolzen

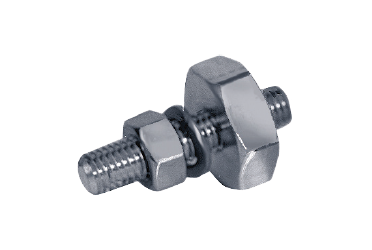

Earthing screw for connection adapter with captive wing nut

  • Material: brass, tin-plated
Mounting for EKV [mm] Width across flats Rated value Ir [kA]/tr = 1 s Item no.
M12 x 60 32 13,8 63-0205-001
M16 x 70 32 18,7 63-0205-002
Silberne Erdungsschraube

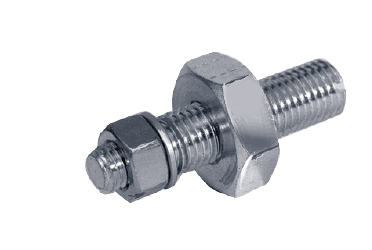

Transition earthing screw for connection adapter with captive wing nut

  • Material: brass, tin-plated
Thread Width across flats Rated value Ir [kA]/tr = 1 s Item no.
M12 to M16 32 18,7 63-0205-003
Silberne Übergangserdungsschraube

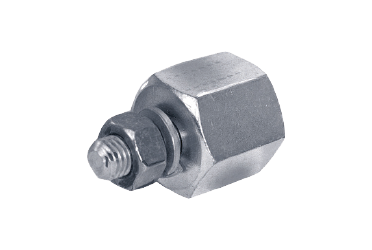

Earthing nut for connection adapter with captive wing screw

  • Material: brass, tin-plated
Internal thread Bolt thread [mm] Width across flats Rated value Ir [kA]/tr = 1 s Item no.
M12 M12 x 25 32 9,9 63-0206-001
M12 M16 x 30 32 9,9 63-0206-003
M16 M12 x 25 32 9,9 63-0206-002
Silberne Erdungsmutter
